Vitocal 200-G Pro

Vitocal 200-G Pro

Large heat pump

Brine-to-water heat pump with the ability to operate in water/water mode with an intermediate brine circuit.

Nominal heating power: 75.4 - 126.5 kW
Compact design - suitable even for corner installation
Pre-assembled electrical equipment
For large buildings and commercial establishments

Eco-friendly heat pumps – learn more about the different options and benefits!

Find out more now

Nominal heating power for brine/water applications

75.4 and 101.0 kW

Nominal heating power for operation in water/water mode

95.7 and 126.5 kW

Compact design

Also suitable for corner installation

Pre-assembled electrical equipment

Provides quick installation

Proven technology

Provides reliable functionality

Flow temperature

Up to 60 °C

Low operating costs thanks to high performance factors

COP (performance coefficient) according to EN 14511: 4.5 (B0/W35)

Low noise and vibration levels

Thanks to the optimized design of the device, the sound power level (with sound-insulated housing): <70 dB(A) (B0/W55)

Easy-to-use Vitotronic control unit

With a normal text and graphic display

Easy access to components

Facilitates maintenance

Electronic soft start system

To reduce the starting current and decrease the power consumed from the network

Ready to use connection

For fail-safe primary and secondary pumps

Reliable commissioning

After checking the functionality at the factory

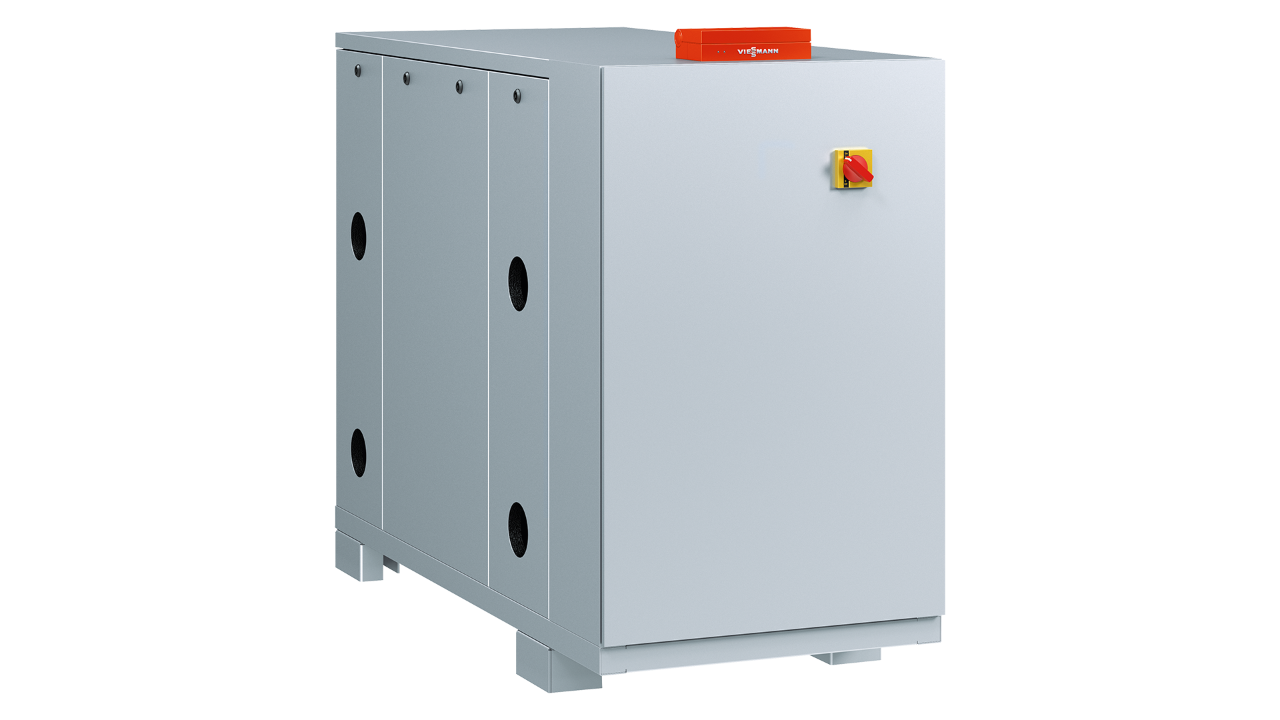

Vitocal 200-G Pro large brine/water heat pump

Vitocal 200-G Pro – a large heat pump for residential and commercial buildings

The Vitocal 200-G Pro heat pump, with an output of up to 101 kilowatts, is an attractively priced solution for traditional heating systems. Its power output reliably meets the many requirements of residential and commercial buildings, both new construction and renovation. These units are standardized, allowing for quick and comprehensive system design and transparent cost calculations.

The design, with its hermetic scroll compressors, requires minimal installation space. A width of just 850 millimeters is sufficient for entry into the installation area. The heat pump is supplied with connections on both the left and right long sides, allowing for installation in various corners.

The electrical components are already integrated into the heat pump casing. Factory-installed contactors for the fail-safe primary and secondary pumps, as well as compressor protection, reduce installation effort and allow for quick installation. Maintenance and servicing of the Vitocal 200-G Pro are also straightforward.

The control unit was adopted from the Vitocal series for detached and semi-detached houses. Here, too, the RCD (refrigerant cycle diagnostics) system continuously monitors efficiency and ensures reliable operation at all operating points thanks to the interaction between the EEV (electronic expansion valve) and extensive sensor technology.

Easy-to-use Vitotronic control unit with text and graphic display

The Vitotronic 200 regulates up to three heating circuits and, thanks to the free cooling function, ensures a pleasant indoor climate on hot summer days. A wide range of system monitoring and optimization settings can be adjusted from anywhere, via the internet or smartphone, using the optional Vitocom 300 communication module.

Vitotronic 200 control unit

Product details

Nominal thermal output (kW), according to EN 14511, B0/W35, 5 K spread	Type BW 202.A080: 75.4 kW \| type BW 202.A100: 101.0 kW
Nominal thermal output (kW), according to EN 14511, W10/W35, 5 K spread	Type BW 202.A080: 95.7 kW \| type BW 202.A100: 126.5 kW
Coefficient of performance ε (COP) B0/W35	Type BW 202.A080: 4.55 \| type BW 202.A100: 4.53
Coefficient of performance ε (COP) W10/W35	Type BW 202.A080: 5.85 \| type BW 202.A100: 5.77
Scope of application	Residential buildings, commercial establishments, local government premises, modernization projects, new construction
Operation	Vitotronic 200 control unit with text and graphic display
Section of the product

ServiceConnect Commercial

The innovative service concept gives AHI-Carrier sales partners an additional advantage when working with commercial customers and local authorities thanks to comprehensive remote service.

+ Increased operational reliability

+ Convenient remote diagnostics

+ Comprehensive error message management
