Heat Pump: All Information at a Glance
A heat pump heats in an environmentally responsible and efficient way. Find out more about types, benefits and subsidies, as well as AHI-Carrier's product range here.
Read More
Vitocal 250-A
Air Source Heat Pump
Monobloc air source heat pump
-
Rated heat output: 2.6 - 13.4 kW
-
Particularly efficient, sustainable operation
-
Specially designed for modernization
-
Cooling function
Rated heating power
2.6 - 13.4 kW
Well suited for retrofits
With a flow temperature of 70 °C (at an outside temperature down to -10 °C)
Climate Protection+++: Protects the environment and climate
Environmentally friendly, natural refrigerant R290 (propane) with a particularly low GWP100 (global warming potential) of 0.02
OptiPerform
Reliable performance with high efficiency
Link to the service
Guaranteed faster response time when a service is needed
Especially quiet
Silent Operation (Super Quiet)
Cooling function
Heating and cooling in one
Low operating costs due to high efficiency
COP (Efficiency Factor) according to EN 14511: up to 5.3 (at A7/W35)
60% less space required
Compared to similar models
Integrated Energy Management System
Provides visibility into energy consumption and costs
ViCare App
For ease of operation
Vitocal 250-A heat pump used in modernized old building
Well suited for retrofitting: Vitocal 250-A
A new generation of heat pumps
Reliable, compact and more environmentally responsible than ever – the new innovative heat pump technology from AHI-Carrier makes it possible to use environmental energy for heating and cooling particularly efficiently. Vitocal 250-A with a flow temperature of up to 70 °C has been specially developed for retrofit projects. Existing radiators can continue to be used. Underfloor heating is not necessary. High energy efficiency, convenient operation via app, stable operation and attractive design are all convincing characteristics.
Vitocal 250-A indoor unit with one (left) or two (centre) integrated heating/cooling circuits and outdoor unit (right)
Vitocal 250-A outdoor unit with floor bracket
Vitocal 250-A outdoor unit with structural floor bracket
AHI-Carrier's integrated range of solutions for Vitocal 250-A
Value-Added Services, Digital Services, Connectivity and Platforms
AHI-Carrier Heat
AHI-Carrier Wärme is our heating system rental service - ideal for those who want to enjoy superb heating comfort without having to buy a boiler.
ViShare
Smart electricity tariffs for your home. Flexible, environmentally friendly and 100% renewable. The electricity tariffs are set by Energy Market Solutions GmbH (EMS), a contractual partner of the ViShare Energy Community and a subsidiary of the AHI-Carrier Group.
Funding professional
The AHI-Carrier FörderProfi service streamlines and simplifies the entire subsidy process, from application to payment.
The ViCare app
The ViCare app provides intuitive heating control. Green for go - the user can see at a glance in the app whether their heating system is working as it should.
The ViGuide app
ViGuide is an application for sales partners. It has numerous functions for monitoring and managing systems in both detached and multi-family houses, as well as providing quick access to the technical service.
Connection inside
Connectivity Inside is an integrated WiFi interface for system control and maintenance using AHI-Carrier applications.
wibutler
wibutler is a manufacturer-independent smart home control centre that connects products from different manufacturers and enables their control and automation through apps.
Advantages of Vitocal 250-A
- Climate Protect+++
- OptiPerform
- Service Link
- Super Silent
The Climate Protect label is based on the TEWI (Total Equivalent Warming Impact) indicator, which measures the efficiency of the appliance throughout its life cycle and the global warming potential of the refrigerant used.
Climate Protect+++ protects the environment and the climate
The new heat pumps in the Vitocal 25x series use the “green” refrigerant R290 (propane), which is considered particularly environmentally responsible due to its very low GWP100 (Global Warming Potential) of 0.02.
OptiPerform – reliable performance with maximum efficiency
AHI-Carrier’s advanced heat pumps work with a patented hydraulic system. Thanks to the Hydro AutoControl® system, the heat pump operates reliably and with maximum efficiency over its entire service life. The unique design not only ensures that your contractor can install a heat pump with OptiPerform much faster and therefore more cost-effective. It also takes up much less space, as it is 60 percent smaller than similar systems.
Service link – fast response time for the service team
Service-coupled heat pumps use wireless technology to automatically notify the trading partner of possible faults. Completely free. This eliminates unnecessary travel as on-site service is faster. Save time and money.
Super Quiet – Quiet Whispers When Operating At Full And Part Load
AHI-Carrier heat pumps are among the quietest of their kind thanks to their advanced acoustic design+ and feature a sound-optimised fan. In combination with intelligent speed control, it significantly reduces the noise level in the air at both full and partial load. As a result, the outdoor unit can be installed even in areas of dense development, for example, in terraced houses or near the border of the site.
One system for everything: AHI-Carrier One Base
AHI-Carrier One Base integrates any smart home solutions you already use, seamlessly and wirelessly. It can be easily expanded, for example, with the help of a wall unit for charging an electric car. As members of the ViShare energy community, users can easily track their rational use of electricity and heat via the AHI-Carrier One Base. The operator and contractual partner of the ViShare energy community is Energy Market Solutions GmbH (EMS), a subsidiary of the AHI-Carrier Group.
AHI-Carrier One Base is compatible with all additional digital services. Integrated services and devices can be easily controlled using voice assistants such as Amazon Alexa and Google Assistant. The new platform is the basis for an expandable and future-proof energy system in every home.
Always in good hands
Only the free ViCare app is required to contact AHI-Carrier One Base; the AHI-Carrier integrated energy management system does the rest. The AHI-Carrier One Base is quick and easy to operate via the app. The contractor can also remotely monitor the system and immediately eliminate possible violations using electronic means. This eliminates unnecessary travel and meetings with a trading partner.
AHI-Carrier One Base makes the home more comfortable, efficient and future-proof.
Comfort at the touch of a finger: easy and convenient control of the power system from anywhere.
The AHI-Carrier One Base can be operated quickly and easily with the ViCare app
All AHI-Carrier systems and smart home solutions on one platform
With the AHI-Carrier One Base, the entire energy system is controlled via a single app – simply, reliably and quickly. The new platform combines all devices and electronic applications in the home into a single climate and energy solution. With beneficial consequences: less energy consumption, a lower carbon footprint and always up-to-date information on current costs. AHI-Carrier One Base makes your own four walls fit for a climate-friendly future!
AHI-Carrier One Base integrates digital networks with complete energy systems, including heat pumps, ventilation systems, energy storage and photovoltaic systems.
Record-keeping with the ViCare App
With the energy cabin in the ViCare app, users can monitor all energy flows in their home. The analysis tool shows the current and past levels of self-sufficiency and self-consumption.
Energy cabin and analysis tool in the ViCare app
AHI-Carrier One Base – many advantages at a glance
- Convenience: Power system control via APP. If necessary, it can be linked to other devices and services, such as Amazon Alexa, Apple HomeKit, Google Assistant, etc.
- Efficiency: The platform links and optimizes energy flows for particularly efficient and therefore economical operation.
- Certainty: The contractor is automatically notified of any violations and can take corrective action online before the situation gets out of hand.
- Sustainability: Long-term integration of all necessary digital services, modernization and expansion of products, e.g. photovoltaic systems with an energy storage unit and a wallbox for e-mobility.
ViCare thermostatic radiator valves enable easy control of individual rooms via an app or voice command, e.g. using Amazon Alexa. Product Details
Product details
| Rated heat output (kW), operating point A7/W35 (according to EN 14511) |
Type 251.A10: 7.3 kW | Type 251.A13: 8.1 kW |
|---|---|
| ε Efficiency Ratio (COP) A7/W35 |
Type 251.A10: 5.3 | Type 251.A13: 5.2 |
| Energy efficiency ƞs* |
Energy efficiency ƞs at W35 in %: Type 251.A10: 197 | Type 251.A13: 181 *Heating performance data in accordance with Commission Regulation (EU) No 813/2013 under medium climatic conditions for low temperature applications (W35) and medium temperature applications (W55) |
| Energy efficiency class, hot water heating |
– |
| Applications |
Detached houses, modernization projects |
| Surgery |
Heat pump control unit with 7″ color touch screen, can be controlled via the ViCare app |
| Hot water heating |
An additional DHW cylinder is required, which provides a high level of DHW convenience. |
| Additional features |
For space heating/cooling and hot water heating | Maximum Flow Temperature: 70°C (Outside Temperature down to -10°C) | Monobloc Indoor Unit with Heat Pump Control Unit, High Efficiency Secondary Circulation Pump, 4/3-Way Valve, Safety Assembly | Built-in instant water heater | Built-in buffer tank for heating water and overflow valve |
| Indoor unit product cross-section with one integrated heating/cooling circuit |
|

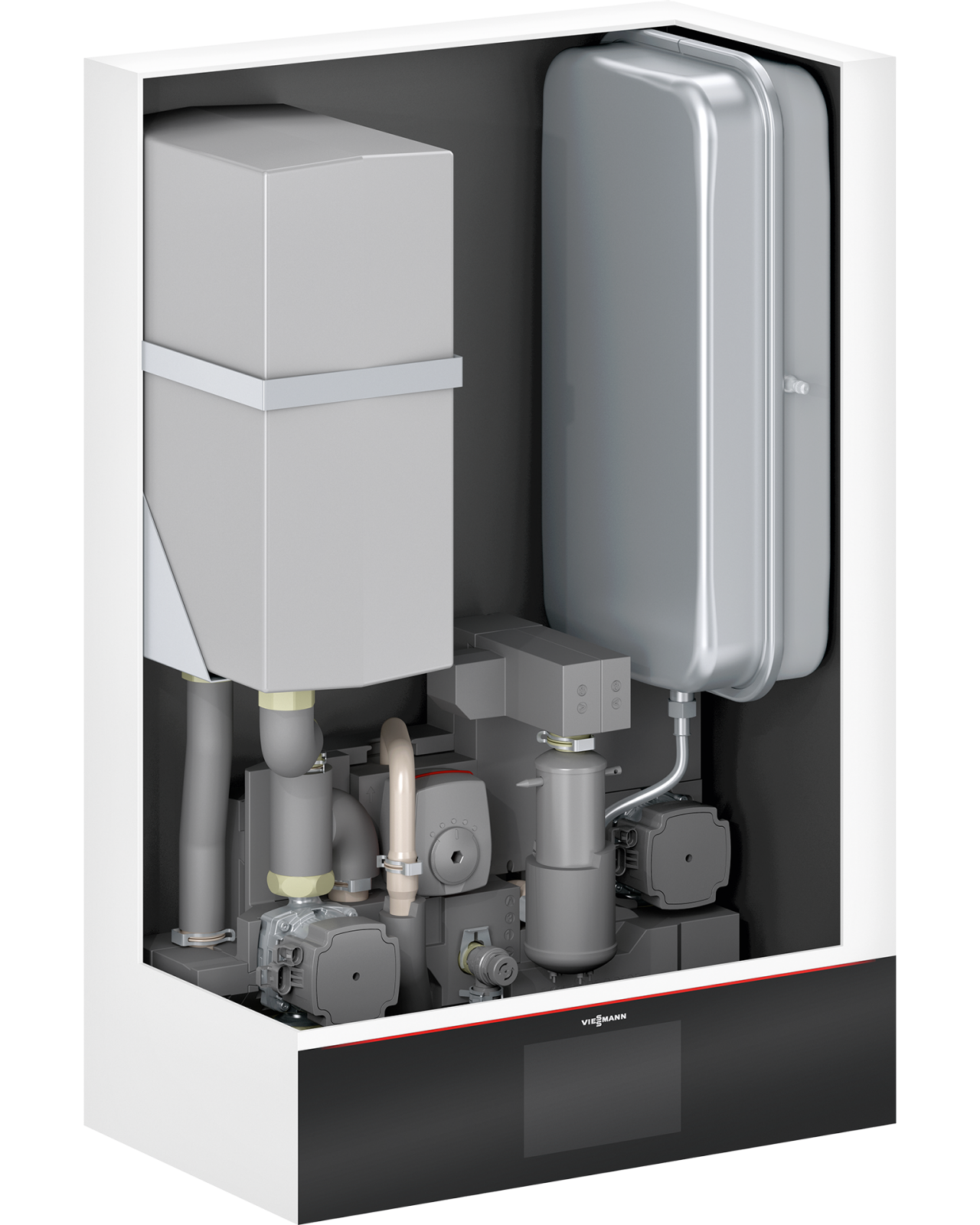

| Section of the indoor unit with two built-in heating/cooling circuits |
|
| Cross-section of the product, outdoor unit |
|
