Vitorondens 200-T

Vitorondens 200-T

Cast Iron Oil Condensing Boiler

Floor-standing cast iron oil condensing boiler with compact dimensions and attractive price/performance ratio. Ideal for retrofitting.

Rated heat output: 20.2 - 107.3 kW
Standard seasonal efficiency [according to DIN]: up to 97% (Hs) [gross cv]
Energy efficiency class A
All commercially available EL fuel oils can be used

Your local AHI Carrier sales partner will provide you with individual advice

Find a Trading Partner Now

Affordable Cast Iron Oil Condensing Boiler

Ideal for retrofits

All commercially available EL fuel oils can be used

Also for fuel oil in accordance with DIN 51603-6-EL A Bio 10: EL fuel oil with low sulphur content and a mixture of up to 10% biocomponents (FAME)

Standard Seasonal Efficiency [DIN]

Standard seasonal efficiency [DIN]: 97% (Hs) [gross cv].

Flexible Placement

Work through a sealed room (up to 53.7 kW) or an open chimney

Silent operation

Due to the external flue gas silencer

Ease of Use

Thanks to the Vitotronic control unit with text and graphic display

Vitoconnect Web Interface

For control and maintenance via the AHI Carrier app (accessories)

Energy efficiency class

Energy efficiency class: A

Vitorondens 200-T cast iron oil condensing boiler and Vitocell DHW cylinder

Cast Iron Oil Condensing Boiler

The Vitorondens 200-T is a floor-standing cast iron oil condensing boiler with an attractive price/performance ratio. The dimensions of the cast iron boiler are impressive in their compactness and are particularly suitable for retrofit projects. It is particularly easy to install thanks to the individual components (with the Vitorondens 200-T from 67.6 to 107.3 kW).

For models up to 53.7 kW, the thermal insulation and control unit are pre-wired, saving installation time. For the Vitorondens 200-T, DHW cylinders are available from the extensive AHI Carrier range.

Integrated range of solutions for Vitorondens 200-T*

Value-Added Services, Digital Services, Connectivity and Platforms

AHI Carrier Heat

AHI Carrier Wärme is our heating system rental service - ideal for those who want to enjoy superb heating comfort without having to buy a boiler.

More about AHI Carrier Heat

Funding professional

The AHI Carrier FörderProfi service streamlines and simplifies the entire subsidy process, from application to payment.

The ViCare app

The ViCare app provides intuitive heating control. Green for go - the user can see at a glance in the app whether their heating system is working as it should.

The ViGuide app

ViGuide is an application for sales partners. It has numerous functions for monitoring and managing systems in both detached and multi-family houses, as well as providing quick access to the technical service.

Connection inside

Connectivity Inside is an integrated WiFi interface for system control and maintenance using AHI Carrier applications.

Features of the Vitorondens 200-T

Vitoflame 300 Blue Flame Oil Burner

The Vitoflame 300 Unit blue flame oil burner is designed for all commercially available EL fuel oil and ensures particularly clean, environmentally responsible and efficient combustion. As an option, up to ten percent of bio-oil can be added to fuel oil.

Heating surface Eutectoplex

The Eutectoplex heating surface guarantees a long service life and a high degree of operational reliability. In combination with the downstream Inox-Radial self-cleaning stainless steel heat exchanger, the Vitorondens 200-T achieves a seasonal standard efficiency [DIN] of up to 97 percent (Hs) [gross cv]. The integrated Jetflow system also ensures optimal distribution of heating water.

Inox-Radial heat exchanger installed

The combination of the long-lasting Eutectoplex heating surface with the downstream Inox-Radial stainless steel heat exchanger effectively separates combustion products and condensate. The advantage: the combustion products remain in the combustion chamber and the combustion products condense in the heat exchanger, leaving no residues behind.

Inox-Radial stainless steel heat exchanger

Rated heat output

from 20.3 to 53.7 kW
from 67.6 to 107.3 kW

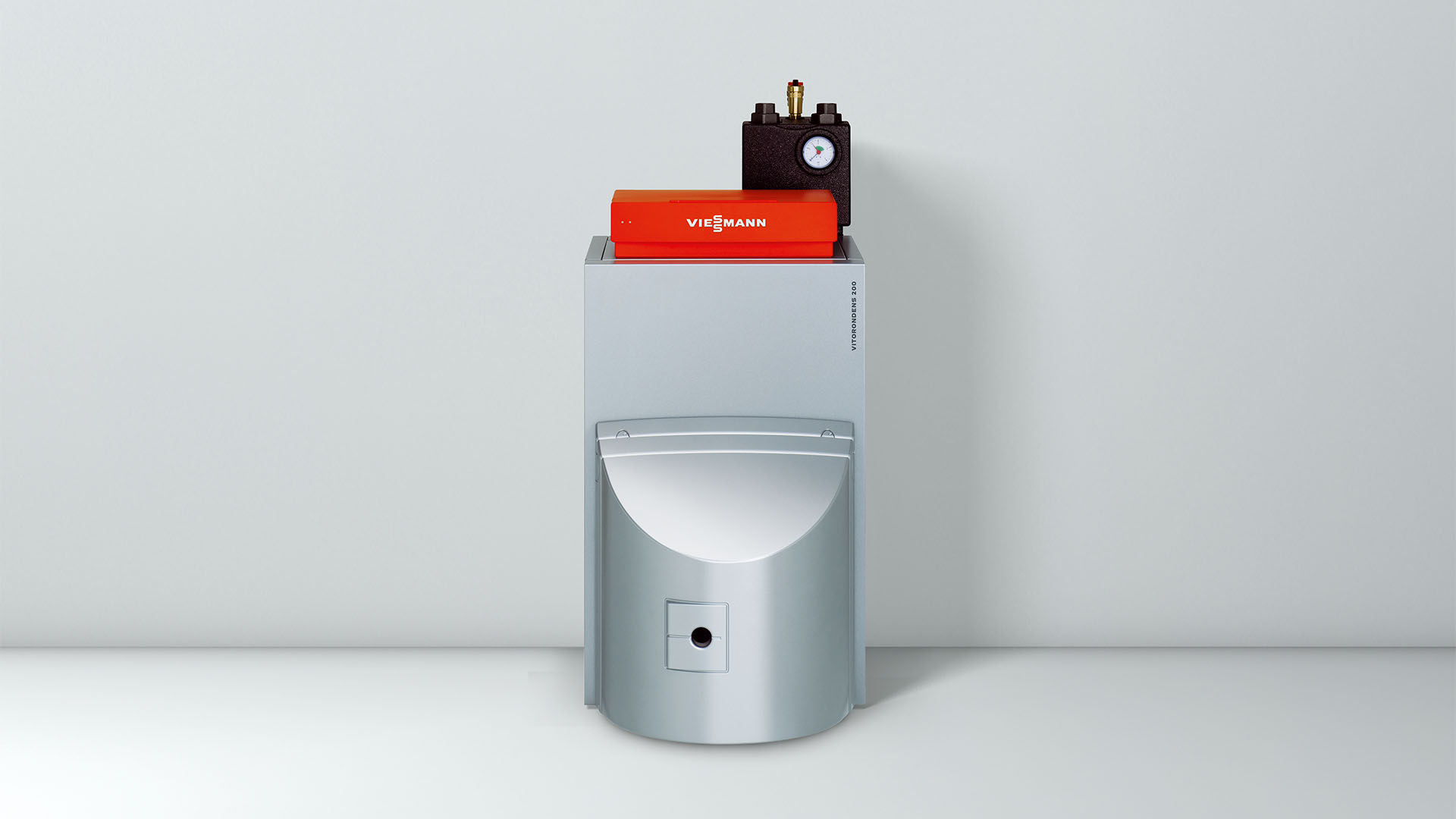

Vitorondens 200-T oil-fired condensing boiler with a rated heat output of 20.3 to 53.7 kW

Vitorondens 200-T oil-fired condensing boiler with rated heat output from 67.6 to 107.3 kW

The Vitorondens 200-T control unit is clear and intuitive

The Vitotronic 200 control unit with text display and graphic support enables simple, intuitive operation via menus. Vitotronic allows you to conveniently control heating systems consisting of one heating circuit without a mixer and up to two heating circuits with a mixer.

Vitoconnect

Interface between boiler and applications
Controlling the heating system with the ViCare app
Remote maintenance of the heating system using the ViGuide app
Comprehensive safety concept

ViCare

Warmth and confidence
Save costs when you're away
Direct communication with your heating contractor
Intuitive operation via smartphone
Extension of the warranty period to 5 years
Savings thanks to smart components

ViGuide

Remote Monitoring
Immediate action
Web app or app
Viewing the map will help you plan your route

Product details

Power (kW)	20.2 – 107.3 kW: Type BR2A 11/2018: Output stages: 20.2; 24.6; 28.6; 35.4; 42.8; 53.7 kW. Type J2RA 11/2018: Output stages: 67.6; 85.8; 107.3 kW.
Standard seasonal efficiency [according to DIN]	97% (Hs) [gross cv]
Energy efficiency class	A
Fuel	All types of commercially available low-sulphur fuel oils can be used, including fuel oil DIN 51603-6-EL A Bio 10: Low-sulphur fuel oil EL with up to 10% bio-based additives (FAME).
Scope of application	Oil heating in detached, semi-detached and multi-family homes, as well as commercial and public buildings \| New build and retrofit projects
Operation	Vitotronic 200 control unit with text and graphic display; can be controlled via the ViCare app up to 35 kW.
Hot water heating	To ensure a high level of DHW convenience, an additional DHW cylinder is required
Additional functions	Inox-Radial stainless steel self-cleaning descending heat exchanger for condensing technology
