Solid Fuel Boilers at a Glance
AHI Carrier solid fuel boilers are economical and versatile. Learn about the different boiler types here.
Read More
Vitoligno 200-S
Wood gasification boiler
High-performance wood gasification boiler with modulating operation mode for logs up to 50 cm long.
-
Nominal heating power: 20 - 50 kW
-
Heats up in just a few minutes
-
An ideal complement to oil and gas heating systems
-
Digital control unit for 3 heating circuits
Your local AHI-Carrier sales partner will provide you with individual advice
High-performance wood gasification boiler
20 - 50 kW
Efficiency
Up to 93.2%
Effective removal of carbonation gas
For recharging with weak smoke after complete burnout
Ultra-clean combustion
Ultra-clean combustion
Additional remote control
Via Vitotrol 350-C
Convenient control
Via the ViCare app on your smartphone
Energy efficiency class
Energy efficiency class: A+

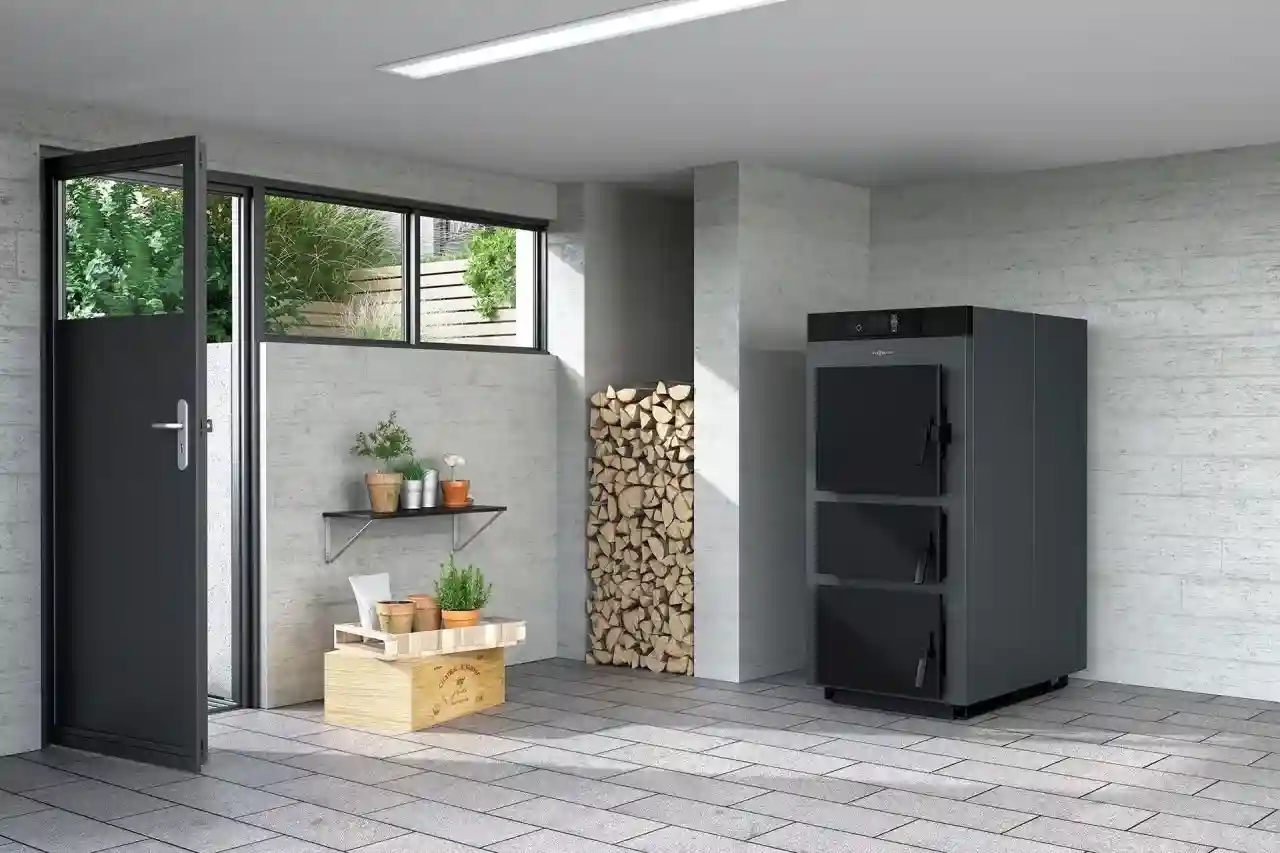

High-performance Vitoligno 200-S wood gasification boiler
Vitoligno 200-S wood gasification boiler
The Vitoligno 200-S is a high-quality wood gasification boiler with outputs ranging from 20 to 50 kW. In the 30 to 50 kW range, it operates in modulating mode, continuously adjusting its output to meet heating needs.
The large stainless steel hopper accommodates logs up to 50 cm long, ensuring a long burn time and a high level of heating convenience. The Vitoligno 200-S wood gasification boiler is a great alternative to oil or gas heating: wood is cost-effective and its combustion is carbon-free.
Integrated AHI-Carrier solution portfolio for Vitoligno 200-S
Value-added services, digital services, connectivity and platforms
Funding professional
The AHI-Carrier FörderProfi service streamlines and simplifies the entire subsidy process, from application to payment.
The ViCare app
The ViCare app provides intuitive heating control. Green for go - the user can see at a glance in the app whether their heating system is working as it should.
The ViGuide app
ViGuide is an application for sales partners. It has numerous functions for monitoring and managing systems in both detached and multi-family houses, as well as providing quick access to the technical service.
Vitoconnect
Vitoconnect is the interface between the boiler and the app - a prerequisite for controlling the heating system via smartphone and tablet. It also enables remote system maintenance for contractors via the Vitoguide app.
Features of Vitoligno 200-S
The Vitoligno 200-S operates in modulating mode, adjusting its output based on heat demand. A combustion controller with a lambda probe and flue gas temperature sensor records the oxygen content and flue gas temperature. This ensures low emissions and high efficiency—up to 93.2 percent. Thus, the Vitoligno 200-S is capable of economically converting logs into useful heat.
The Vitoligno 200-S’s heat exchanger is quickly and easily cleaned using a lever mechanism. Thanks to its clean combustion, it produces little residue. This means ash removal is only necessary every two weeks or so, even during the heating season.
The heating process is complete in just a few minutes. Reduced oxygen supply to the hopper ensures complete combustion of the logs. The flammable wood gas burns cleanly and at high temperatures, while secondary air is added. A variable-speed flue gas fan allows for reliable control of full and partial loads.
An automatic ignition device is available as an optional extra for igniting the fuel. The control unit even allows you to program the desired ignition time.
The Vitoligno 200-S control unit is clearly laid out and intuitive
Touch screen remote control
The Vitotrol 350-C touchscreen allows you to control your wood gasification boiler from the living area. With a five-inch, 16:9 display, operation couldn’t be simpler. The Vitotrol 350-C wall-mounted unit allows remote control of the boiler, offering all the necessary settings and displaying all the necessary information about the boiler and the heating water buffer tank.
The Vitotrol 350-C is more than just a remote control. It can also expand the system and integrate up to 20 additional control modules (heating circuits, DHW heating) into a single device.
The Vitotrol 350-C remote control with touch display was awarded the Red Dot Design Award 2014 by Design Zentrum Nordrhein-Westfalen.
Product details
| Exit |
20 – 50 kW. Type VL2A 3/2017: output stages: 20.0; 30.0; 40.0; 50.0 kW |
|---|---|
| Permissible operating temperature |
Up to 95°C |
| Permissible working pressure |
3 bar (0.3 MPa) |
| Efficiency |
Up to 93.1% |
| Energy efficiency class |
A+ |
| Fuel |
Logs up to 50 cm long |
| Scope of application |
Detached houses, semi-detached houses, new construction and modernization projects |
| Operation |
Boiler control unit with menu and buffer charging control, optional remote control with touch screen, control via ViCare app possible |
| Hot water heating |
To ensure a high level of convenience in hot water supply, an additional multi-mode buffer tank for heating water is required. |
| Additional features |
Simple mechanical cleaning of heating surfaces using a lever, long cleaning intervals, for example, ash only needs to be removed once every two weeks or so |
| Section of the product |
|
